Availability: 99999 In Stock
Light Source™ Mega-Quick Pipe Splice quickly joins two pipes in line together without drilling or threading for permanent or temporary installations.
Light Source Mega-Folding Batten Clamp, Black
$19.99
Ships in 5-7 days (However, we sometimes experience delays with some fabrics/colors.)
Light Source Mega-Folding Batten Clamp is the fastest way to hang 1-1/2" pipe. Low profile on the bottom end of the batten. Easier to fasten curtains, scenery, and lighting.
The one-piece, Mega-Folding Batten Clamp is the fastest way to hang 1-1/2" pipe. The tight compression fit keeps pipe from rotating within the clamp. The Mega-Folding Batten Clamp hinges around the pipe batten and fastens with a single 7/16"-14 TPI Flathead Socket Screw with using a 1/4" hex driver. Secure to structural supports with up to a 7/16" shackle pin, quick link, or turnbuckle jaw. Very low profile on the bottom end of the batten, makes it easier to fasten curtains, scenery, and lighting. CNC Machined 1/4" thick x 2" wide 6061T-6 Aluminum with 7/32" x 2" HD Sprirol Coiled Pin for hinge joint.
Technical Specifications:
- Working load limit (WLL):1675 lbs
- Available in black anodized
*WLL is maximum load that can be applied to the beam clamp which is in "like new" condition and has been properly installed, maintained, and operated.
MFBATB
999 Items
Light Source Mega-Folding Batten Clamp is the fastest way to hang 1-1/2" pipe. Low profile on the bottom end of the batten. Easier to fasten curtains, scenery, and lighting.
in the same category
13 other products in the same category:
Availability: 977 In Stock
The IWEISS Wall Stabilizer P311 is 1-9/16” DOM tube black finish steel welded to 1/4” plate steel that is meant for insertion into Schedule 40 1-1/2” pipe. It is used as lateral stabilization for pipe grids. Mounting hardware for attachment to structure is not included. Stabilizer can be drilled for a bolted connection, or provided as shown as a solid tub
Availability: 999975 In Stock
Light Source™ Mega-Batten Clamp uses the same hardware and wrench as the rest of the grid system (1 inch x 5/16 inch socket head cap bolt 5/16 inch zinc plated nylon hexbolt). 1/2 inch hole in top for shackles.
Availability: 999 In Stock

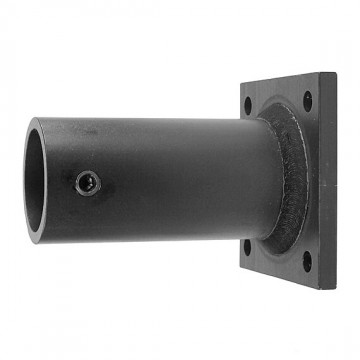

Light Source Wall Mount (WM1.5PB) quickly secures 1.5" (1.9" O.D.) pipes to the wall for permanent or temporary installations.
Availability: 99975 In Stock
Light Source™ Mega-Quick Pipe Splice quickly joins two pipes in line together without drilling or threading for permanent or temporary installations.
Availability: 999999 In Stock
Light Source™ Mega-Track Hanger makes hanging 140 or 300 series track from pipe grids or from individual pipes easy.
Availability: 999995 In Stock
Cross Grid Connector allows pipe to be added or removed in place without sliding them from the ends.
Availability: 999999 In Stock
Light Source™ Mega-Track Hanger makes hanging 140 or 300 series track from pipe grids or from individual pipes easy.
Availability: 999977 In Stock
Light Source™ Threaded Rod Hanger for the Mega-Batten Clamp allows for connection to a Mega-Batten Clamp.
Availability: 999997 In Stock
Light Source Purlin Clamp (1/2 inch Fasteners) is perfect for installing almost anything to bar joists, purlins and I-beams up to 1 inch thick.
Availability: 999968 In Stock
Light Source™ Mega-Gridlock Clamp is designed for permanent pipe grid installations in studios and theaters. Joins 2 overlapping pipes together in a 90 degree joint. Grooves act as a wrench holding the nut from turning while installing. Installs with a hex key tool in a battery drill.
Availability: 999 In Stock
The IWEISS Wall Flange P310 is comprised of a U-Bolt mounted to angle iron. It is used for lateral stabilization for pipe grids. Mounting hardware for attachment to structure is not included.
Availability: 999999 In Stock
Light Source Purlin Clamp (3/8 inch Fasteners) is perfect for installing almost anything to bar joists, purlins and I-beams up to 1 inch thick.
